plastic recycling washing line with high output

Product Overview



Our food grade pet bottle washing recycling line is an industrial recycling system designed to process post-consumer and post-industrial plastic waste efficiently,hygienically,and consistently.With processing capacities from 500 to 6,000 kg/h,the food safe plastic recycling equipment can be configured for small,medium,and large-scale plastic recycling plants.



The complete food grade pet bottle recycling line may include sorting, crushing,washing,drying,extrusion,filtration,pelletizing,and auxiliary systems.The food safe plastic recycling equipment configuration is customized according to the plastic type,incoming material condition,required output quality,and production capacity.



Designed for plastic recycling applications,the food safe pet bottle cleaning system is suitable for processing materials such as:



- Pet bottles and containers

- Hdpe bottles and packaging

- Pp food containers and caps

- Ldpe and LLDPE films

- Rigid plastic packaging

- Post-industrial plastic scrap

- Clean production waste

- Selected post-consumer food packaging



> Important:“Food-safe” refers to the hygienic design and suitability of the food safe plastic recycling equipment for processing plastic intended for food-packaging recycling applications.Whether the final recycled resin is approved for direct food contact depends on the input material,decontamination process,filtration system,regulatory requirements,and required certifications.



Key Features



1. Wide Capacity Range



The B2B food grade cleaning system is available in capacities from 500 kg/h to 6,000 kg/h,making it suitable for:



- Small recycling facilities

- Medium-sized processing plants

- Large centralized recycling operations

- Dedicated pet,pp,hdpe,or film recycling lines



Production capacity can be adjusted through equipment size,motor configuration,washing setup,extrusion system,and pelletizing technology.



2. Hygienic and Food-Safe-Oriented Design



For applications involving food-packaging plastics,the food grade B2B pet bottle washing line can be designed with hygienic production principles,including:



- Stainless steel contact components where appropriate

- Smooth internal surfaces for easier cleaning

- Reduced material retention areas

- Corrosion-resistant construction

- Separate dirty and clean processing zones

- Controlled material transfer between processing stages

- Easy-access inspection and maintenance points



The food pet bottle recycling machine design helps minimize contamination during processing and supports the production of clean,consistent recycled plastic feedstock.

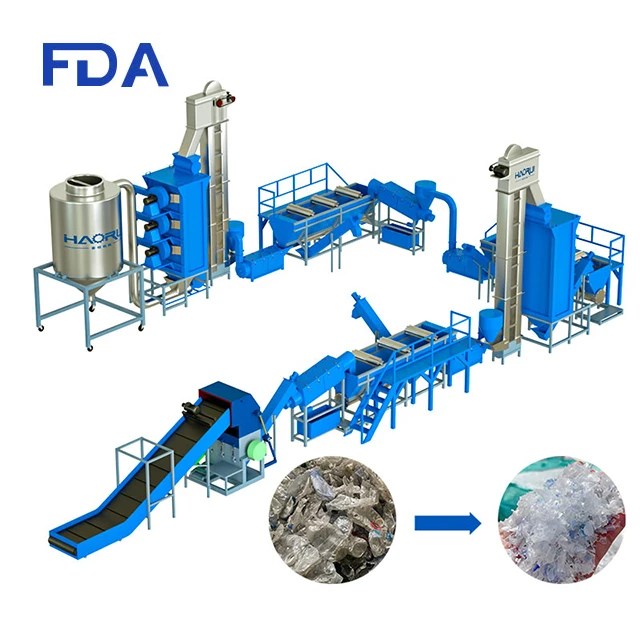

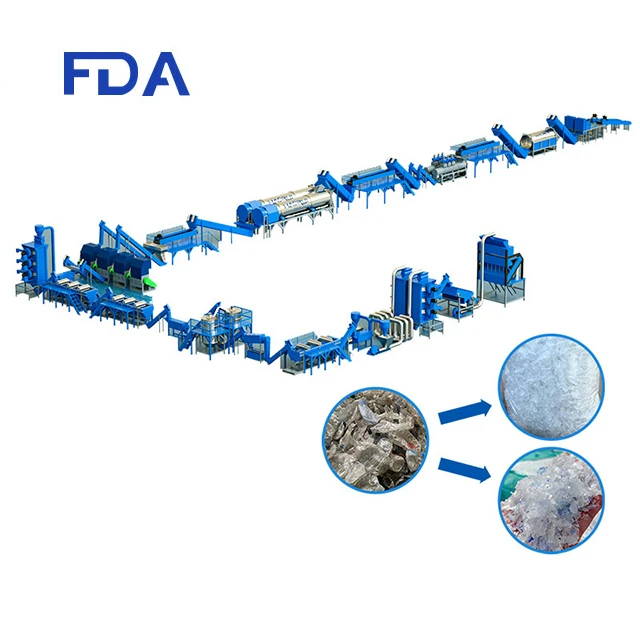

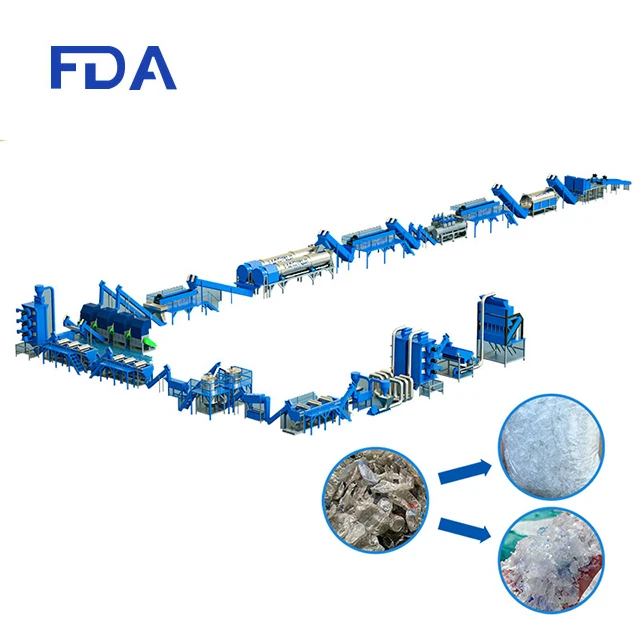

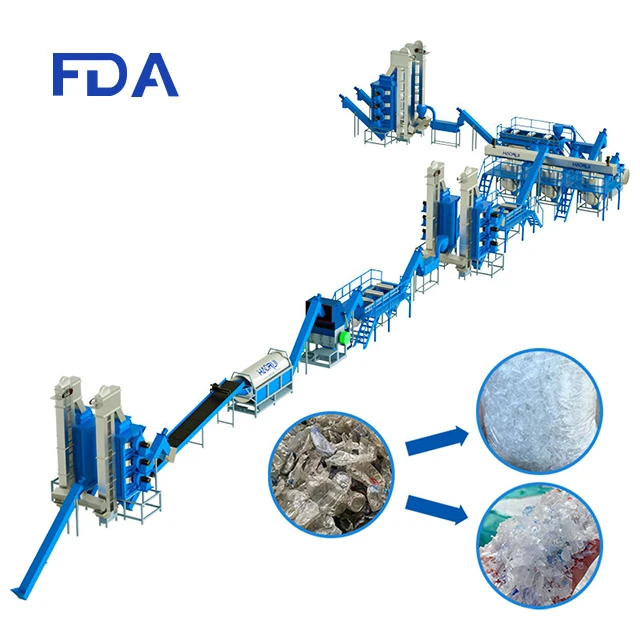

3. Complete Plastic Recycling Process



A typical food grade pet bottle washing machine may include the following stages:



1. Feeding and pre-sorting

2. Metal detection and removal

3. Shredding or granulation

4. Pre-washing

5. Friction washing

6. Hot washing,when required

7. Rinsing and contaminant separation

8. Mechanical dewatering

9. Thermal drying

10. Extrusion and melt filtration

11. Pelletizing

12. Screening,cooling,and packaging



The final configuration depends on whether the input material is bottles,rigid packaging,film,flakes,or production scrap.



4. Efficient Contaminant Removal



The food safe B2B recycling machine can be equipped to remove common contaminants,including:



- Food residue

- Dirt and dust

- Labels and adhesives

- Oil and grease

- Organic contamination

- Paper and fiber

- Sand and stones

- Ferrous and non-ferrous metals

- Plastic materials with different densities

- Moisture and volatile substances



Sink-float separation,friction washing,hot washing,air classification,magnetic separation,and melt filtration can be combined according to the application.



5. High-Performance Shredding and Crushing



Heavy-duty shredders and granulators reduce plastic waste into uniform flakes for efficient washing and further processing.Features may include:



- Robust steel construction

- Replaceable cutting blades

- Adjustable cutting configuration

- Automatic overload protection

- Stable operation under continuous production

- Easy access for blade inspection and replacement



Uniform flake size improves washing performance,drying efficiency,and extrusion stability.



6. Advanced Washing System



The washing section in the pet bottle recycling machine is designed to provide effective cleaning while managing water and energy consumption.Depending on the material,the system may include:



- Pre-washing units

- Friction washers

- High-speed washing machines

- Hot-washing tanks

- Floating separation tanks

- Rinsing tanks

- Screw conveyors

- Water filtration and recycling systems



The washing process can be optimized for pet bottles,hdpe containers,pp packaging,or plastic films.

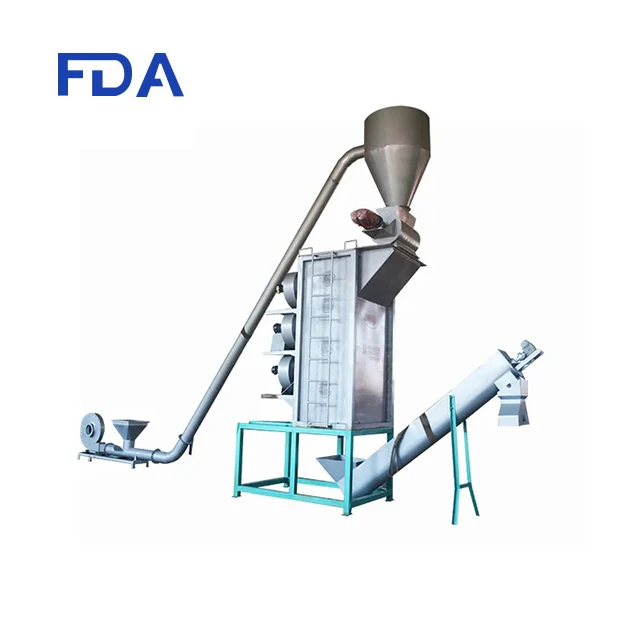

7. Efficient Dewatering and Drying



Moisture control is essential for stable extrusion and high-quality pellets.The system may use:



- Centrifugal dewatering machines

- Screw presses

- Thermal drying units

- Hot-air circulation systems

- Moisture monitoring devices



Efficient drying helps reduce energy consumption during extrusion and improves the appearance and consistency of the recycled material.

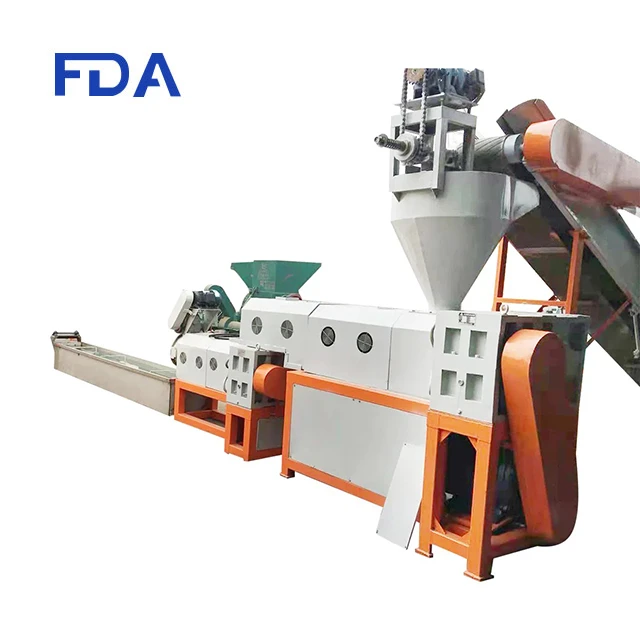

8. High-Quality Extrusion and Filtration



The extrusion section melts and homogenizes clean plastic flakes before pelletizing.Optional features include:



- Single-screw or twin-screw extruders

- Vacuum degassing

- Continuous or automatic melt filtration

- Laser or pressure-controlled screen changers

- Stable temperature control

- Automatic pressure monitoring

- Strand or underwater pelletizing systems



Fine melt filtration helps remove remaining solid impurities and supports the production of more uniform recycled pellets.



9. Automation and Process Control



The fda approved B2B pet bottle washing line can be supplied with centralized control and automation systems to improve production efficiency and operating safety.Functions may include:



- PLC-based control

- Touchscreen operator interface

- Automatic temperature regulation

- Motor load monitoring

- Pressure and flow monitoring

- Water-level control

- Alarm and fault indication

- Emergency-stop protection

- Production data monitoring



Automation reduces manual intervention and helps maintain stable operating conditions.



10. Modular Plant Configuration



Each fda approved rpet bottle washing machine is built from modular sections,allowing the equipment to be configured for different materials and production requirements.Customers can select:



- Washing-only systems

- Flake production lines

- Pelletizing lines

- Complete bottle-to-pellet systems

- Film recycling lines

- Rigid plastic recycling systems

- Custom food-packaging recycling plants



This modular approach allows the fda approved rpet flakes washing line to be expanded as production requirements increase.



Applications



The fda approved food grade pet bottle washing line is suitable for recycling plastic materials used in:



- Food and beverage packaging

- Household product containers

- Bottles and caps

- Plastic trays and tubs

- Industrial packaging

- Agricultural film

- Manufacturing scrap

- Retail and distribution packaging

- Consumer post-use plastic waste



The recycled flakes or pellets can be used in applications such as injection molding,blow molding,extrusion,sheet production,pipe manufacturing,film production,fiber production,and non-food packaging—subject to the quality and regulatory requirements of the final application.



Advantages of the Recycling Plant



- Factory-direct pricing

- Capacity range from 500 to 6,000 kg/h

- Complete turnkey recycling plant options

- Suitable for food-packaging plastic recycling applications

- Hygienic and easy-to-clean equipment design

- Efficient washing and contaminant separation

- Stable extrusion and melt filtration

- Reduced plastic waste disposal costs

- Lower dependence on virgin plastic materials

- Customizable layout and equipment combination

- Automated control for reliable operation

- Designed for continuous industrial production

- Technical support for installation and commissioning



Customized Solutions for Different Plastic Waste



PET Bottle Recycling



A fda approved food grade pet bottle recycling machine may include bottle sorting,label removal,crushing,pre-washing,hot washing,rinsing,drying,and high-quality flake production.An additional extrusion and pelletizing section can be added when recycled pet pellets are required.



HDPE and PP Container Recycling



The food safe pet bottle washing recycling line can process rigid containers,caps,crates,drums,and other polypropylene or high-density polyethylene products.Density separation,friction washing,and melt filtration help improve output quality.



Plastic Film Recycling



Film recycling systems may include shredding,compacting,washing,dewatering,thermal drying,extrusion,degassing,and pelletizing.Special feeding and agglomeration equipment can be used to improve film processing stability.



Food-Packaging Plastic Recycling



For selected post-consumer food packaging,the food grade pet bottle recycling line may be equipped with advanced washing,drying,contaminant separation,vacuum degassing,and fine melt filtration.Additional regulatory validation and decontamination requirements may apply when the recycled output is intended for direct food contact.



Factory-Price Supply and Project Support



As a complete equipment supplier,we can provide more than individual machines.Project support may include:



- Raw material evaluation

- Process design

- Equipment selection

- Plant layout planning

- Capacity calculations

- Utility requirement recommendations

- Machine manufacturing

- Factory testing

- Installation guidance

- Operator training

- Commissioning support

- Spare parts and after-sales service



The final quotation is based on the selected capacity,plastic material,contamination level,washing requirements,automation level,pelletizing method,and plant configuration.



Why Choose This Plastic Recycling Equipment?



This food safe plastic recycling equipment combines high processing capacity,efficient cleaning,reliable extrusion,and flexible configuration in one complete plastic recycling plant solution.It is designed to help recycling companies convert plastic waste into valuable flakes or pellets while improving resource efficiency and reducing environmental impact.



For an accurate factory-price quotation,provide the following information:



1. Plastic material type

2. Input form,such as bottles,film,flakes,or rigid parts

3. Required capacity in kg/h

4. Contamination level

5. Desired output—washed flakes or recycled pellets

6. Whether hot washing is required

7. Target application for the recycled material

8. Available workshop dimensions and power supply



With this information,the food grade B2B pet bottle washing line can be configured to meet specific production,hygiene,quality,and investment requirements.
